LOADINGDOCK TURNTABLES

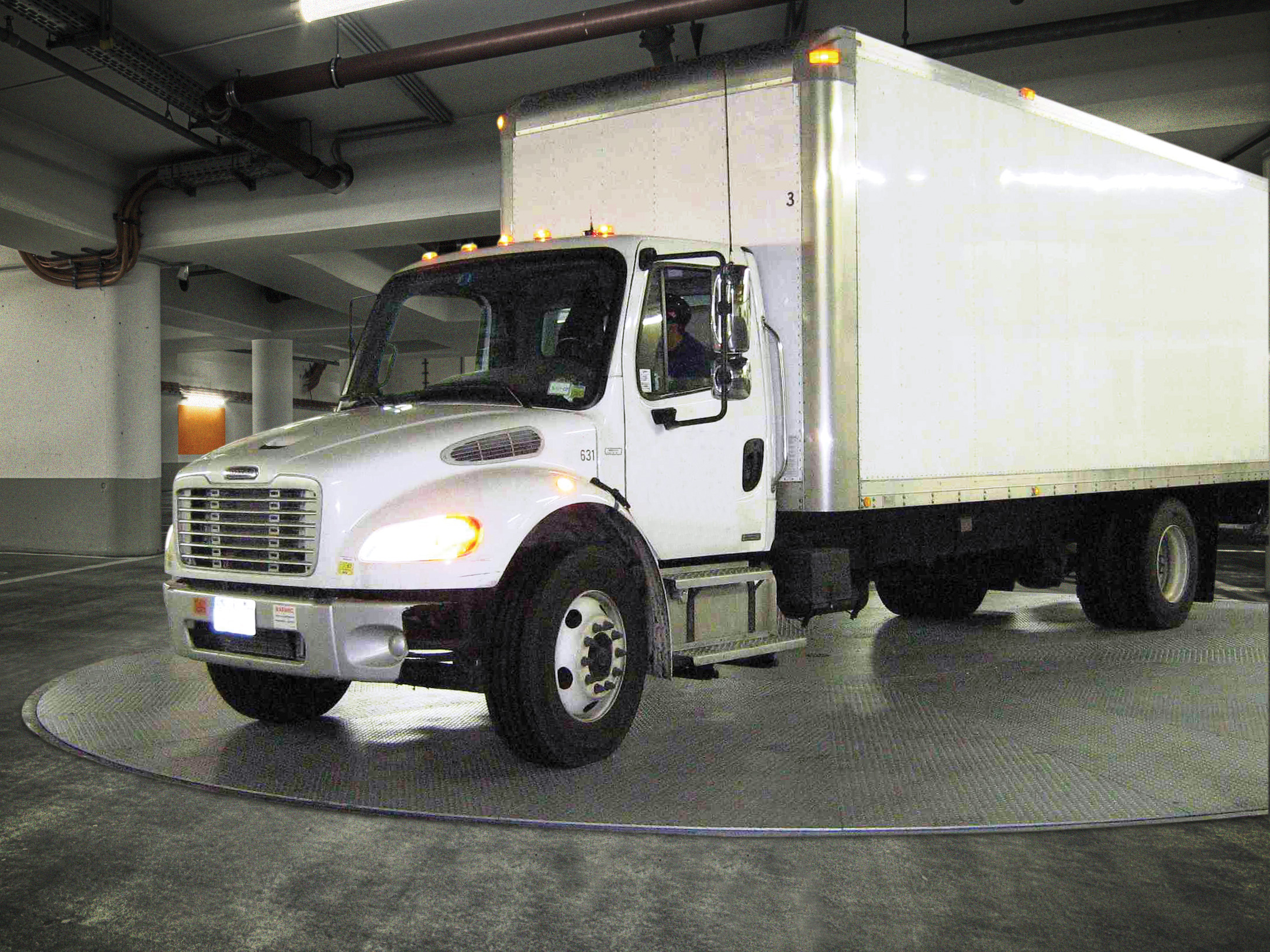

Tight spaces? Difficult to make a turn? High delivery volumes? Busy street? Macton loading dock turntables turn logistics and traffic nightmares into safe, efficient solutions for maneuvering in restrictive spaces. A Macton loading dock turntable can be installed in a new or existing loading dock on a level concrete slab with our new pitless design. No need to worry about your pit flooding and ruining your equipment. With a low profile of less than 5 inches, a ramp surrounding the turntable can be provided to ease the transition. Now, vehicle drivers will know exactly when all wheels are safely on the turntable. Loading dock turntables are available up to 100 feet in diameter with 100,000 lbs capacity. Custom-designed turntables with larger diameters or higher-load capacities can also be provided. A modular design with minimal components allow for a quick and easy installation, lasting only 2-3 days for an average size loading dock turntable.
Faced with ever increasing challenges for effective space utilization and reduced operating costs, loading dock turntables offer architects and owners a proven solution to new money-saving design options.
PRODUCT DIMENSIONS & STRUCTURE | |
Diameter | Turntable available in sizes ranging from 20’ to more than 100’ |
Turntable Height | Total height of the turntable is 4 ½” (as measured from floor level to the top of the turntable) – a small steel ramp surrounds the turntable to allow vehicles to easily move on and off – this allows the turntable to be installed without a pit (which avoids the need for expensive excavation, construction of a concrete pit, drainage, civil engineering costs, etc.) |
Deck Construction | Steel deck plate |
Modular Sections | Turntable built in modular steel sections, allowing for a quick and reliable assembly of the turntable at the jobsite, as well as for better control of the overall equipment quality |
Wheels | Steel wheels are tapered to roll with the curvature of the track, creating a smooth and quiet operation, as well as low friction and wear for a long product life |
Center Support | The center support consists of a main steel weldment with a large diameter bearing assembly, which is designed to support both radial and axial loads |
Access Hatches | Hatches are built into the deck to provide access to the wheels |
Surface Finishes | Structure primed and deck finished with an elastomeric coating (Rhino Liner) to allow the turntable to flex without easily flaking |
PERFORMANCE INFORMATION | |
Total Live Load Capacity | Will support and rotate a 100,000 lb. vehicle |
Maximum Point Load | 22,000 lbs. per vehicle axle anywhere on the turntable deck |
Rotational Speed | One-half or one third of a revolution per minute (depending on turntable diameter); different speeds available as an option |
Drive Direction | Either clockwise or counter-clockwise (as desired) |
Drive System | One (1) external drive (outside the turntable diameter) with positive mechanical engagement and located in an auxiliary drive box |
ELECTRICAL SYSTEM | |
Motor Used | One (1) electric motor drives the turntable system; uses 480V, three-phase, 60Hz power |
Control System | Wireless remote control provided, which provides ON/OFF, FWD/REV and variable speed control |
UL Certified Electrical System | All of the electrical panels are tested, certified and labeled to the UL 508A standard for industrial control equipment |
GENERAL INFORMATION | |
Quality Procedures | All materials and work done on the system are carefully monitored under an ISO 9001:2008 certified program and 100% designed and built in our facility in the U.S.; all welding is performed in accordance with ANSI/AWS Structural Welding Code D1.1 standards and is inspected and approved by a Certified Welding Inspector; these quality procedures and materials, along with Macton’s experienced workforce, ensure the turntable performs smoothly, quietly and reliably throughout the life of the facility; we strongly encourage you to visit one of our installations to see first-hand the quality of a Macton turntable |
Estimated Install Time | Installation of the equipment, using a two-man work crew for installation, typically takes about 2 days for smaller turntables (i.e., up to 40’ in diameter) and 3+ days for larger turntables |
Warranty Period | 5 years – the most extensive warranty in the industry |
O&M Manual | Operation & Maintenance manual in English provided in electronic format |
Ease of Maintenance | The turntable can be easily maintained without the need for third party maintenance support |
AVAILABLE OPTIONS | |
Spare Parts | Spare parts available upon request (e.g., additional remote controls) |
